제품명

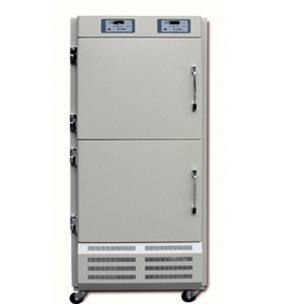

2실배양기( Twin-Room Incubator)
2668 2022.12.23 13:20
관리자
Incubator
0
2668
2022.12.23 13:20
제품특징
항온실험 및 온도변화 실험, 수질분석실험, 보존성실험, 동식물성 세포배양등 실험 및 작업환경에 맞춰 사용가능하다.
도어 개방시 순환팬 가동이 중지되며, 내부 LED 램프가 점등됨.
Timer 기능 장착으로 예약작업 가능
도어 개방시 순환팬 가동이 중지되며, 내부 LED 램프가 점등됨.
Timer 기능 장착으로 예약작업 가능
제품사양
MODEL | NEX-201-2 | NEX-202-2 | NEX -202SU |
Dimension (IN) | 500x500x1000(H)mm x 2Room | 500x500x400(H)mm :2room | |
(OUT) | 1260x740x1500(H)mm | 1260x740x1500(H)mm | 660x800x1950(H)mm |
Compressor | NONE | 1/3HP x 2EA | ㅡ |
Capacity | 250 LIter x 2Room / Total 500 Liter | 200Liter (위: 100L / 아래 : 100L) | |
Shelves | 3 EA / Each Chamber, Adjustable Type | 2 EA X 2 | |
Circulation Fan | Internal Convection Fan | 2 EA | |
Temp. Controller | Digital P.I.D Controller(Auto Tuning) x 2Room | Digital P.I.D Controller (Auto Tunimg) | |
Temp. Range | Ambient +5'C to 70'C | -10'C to 70'C | - 10℃ to 70℃ |
Temp. Accuracy | ±0.1'C at 20'C | ±0.1℃ at 37℃ | |
Temp. Sensor | PT-100Ω / 0.15Grade | ||
Timer | Digital Timer 99hr 59min or Infinity | ||
Material (IN) | Stainless Steel (SUS304) | Stainless Steel(SUS304) Polishing Plate | |
(OUT) | SCP-1 with Powder Coating | ||
Door | Double Door, Tempered Glass Inner Door | Double Door, Tempered Safety Glass Inner Door | |
Cooling System | ON/OFF Auto Type | ||
Packing (IN/OUT) | ON/OFF auto type | ||
Defrost | Automatic Defrost System | ||
Safety Device | Hydraulic Temperature Controller | Silicon Rubber / Magnetic Packing | |
Power(AC 220V, 60HZ) | 1 KW | 2 KW | 2.5 KW |
